AF4 Angle Finder
A handy, pocket sized edition of the ever-popular TrigJig Angle Finder.

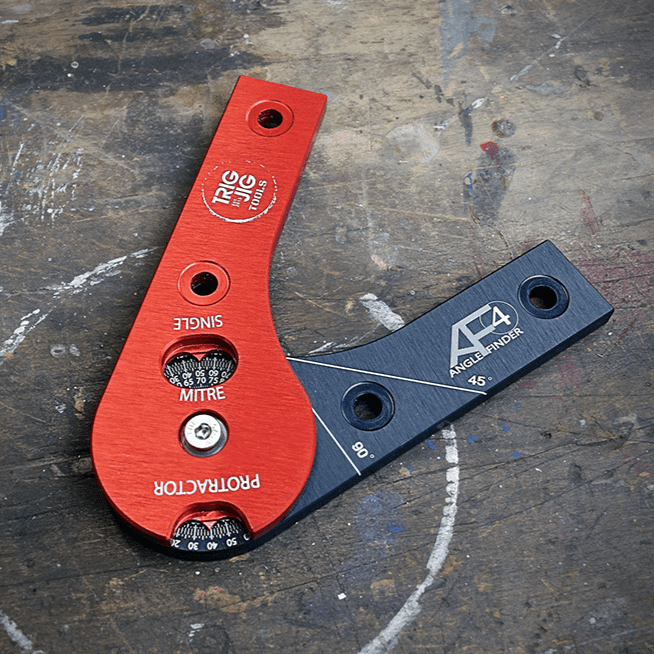

At just shy of 5" with 4" arms, the AF4 Angle Finder is the perfect pocket tool to carry on every job. We've designed this convenient, lightweight angle finder for smaller trim, cabinetry and metal fabrications, but it's handy anytime you need to quickly measure an angle.

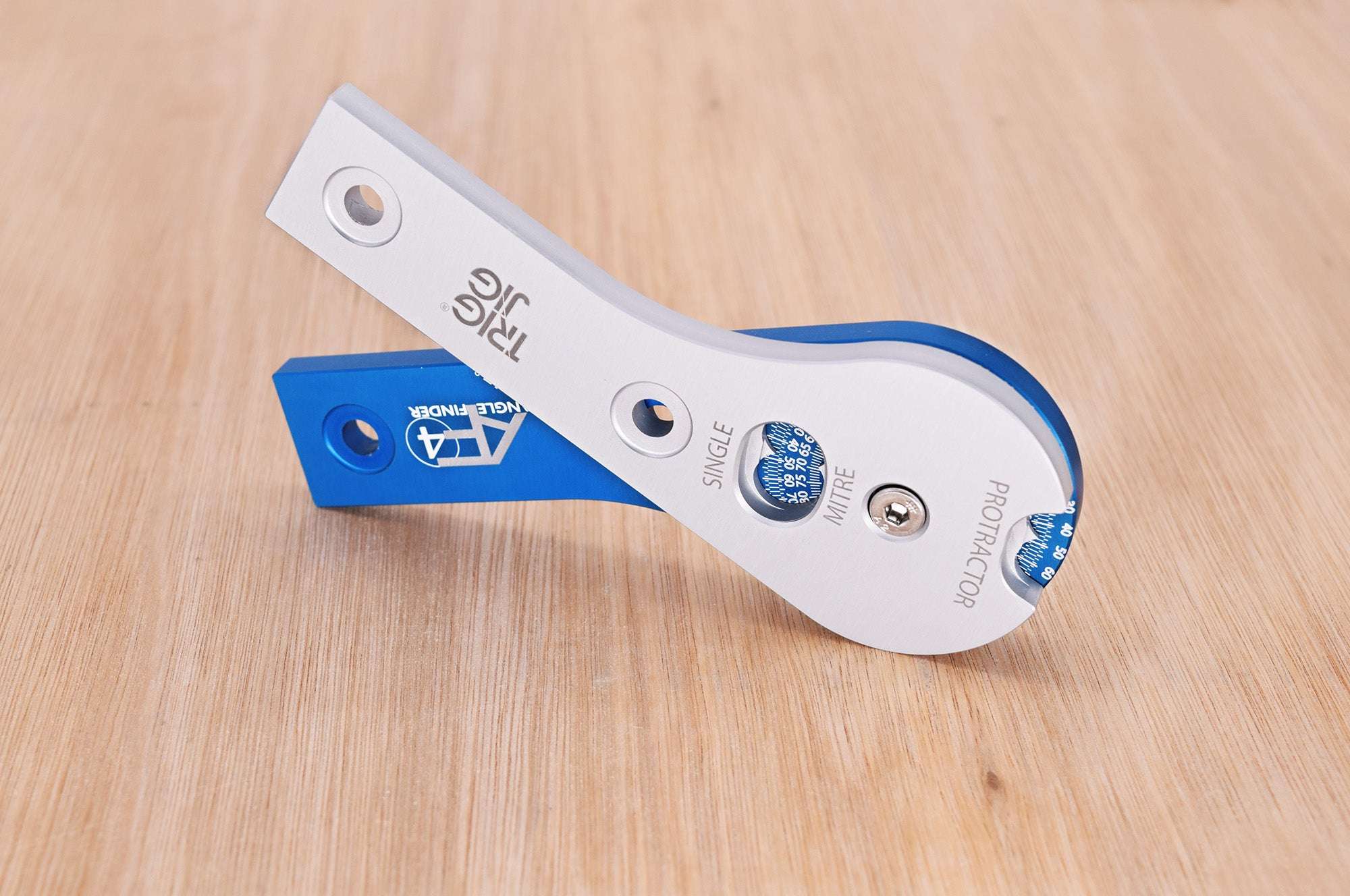

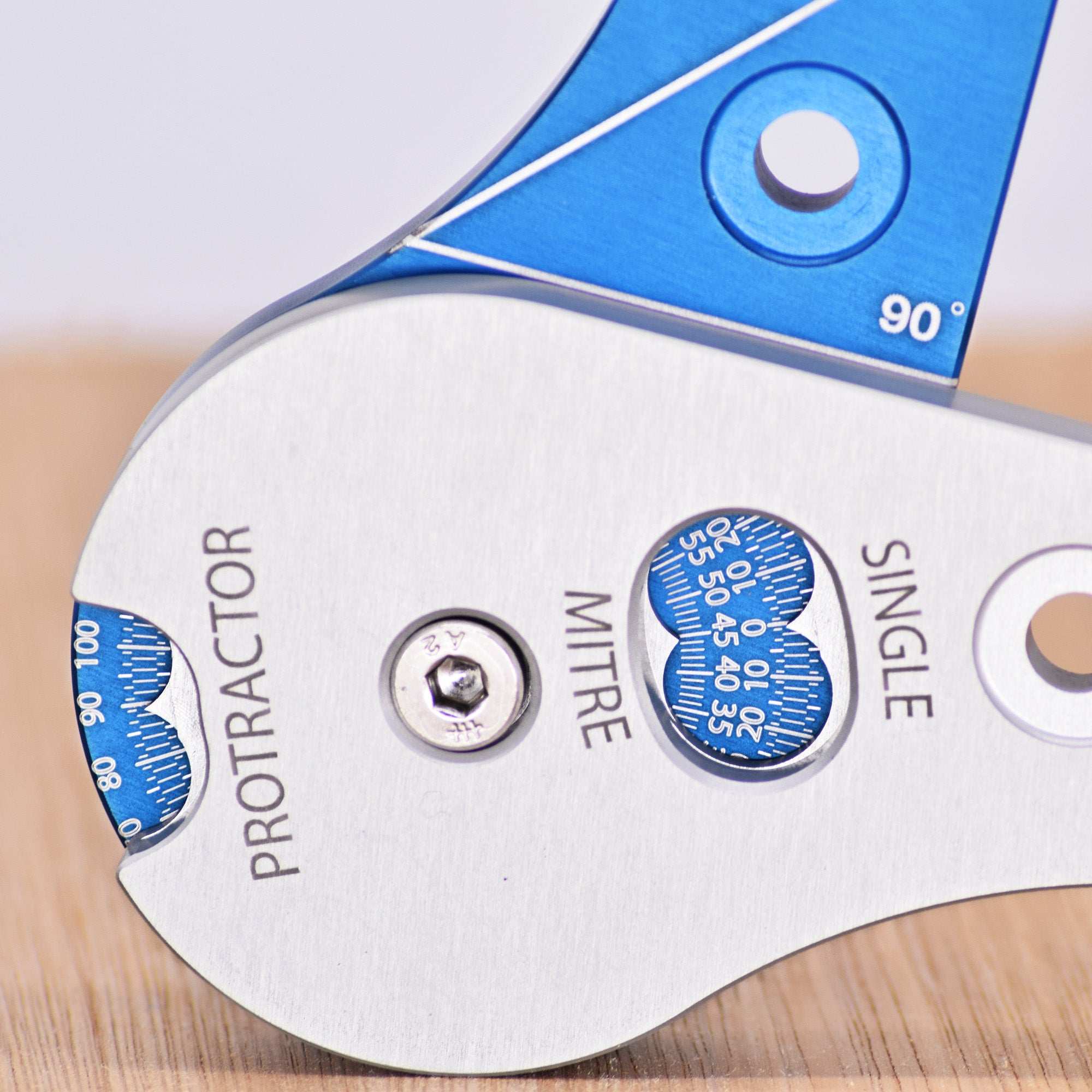

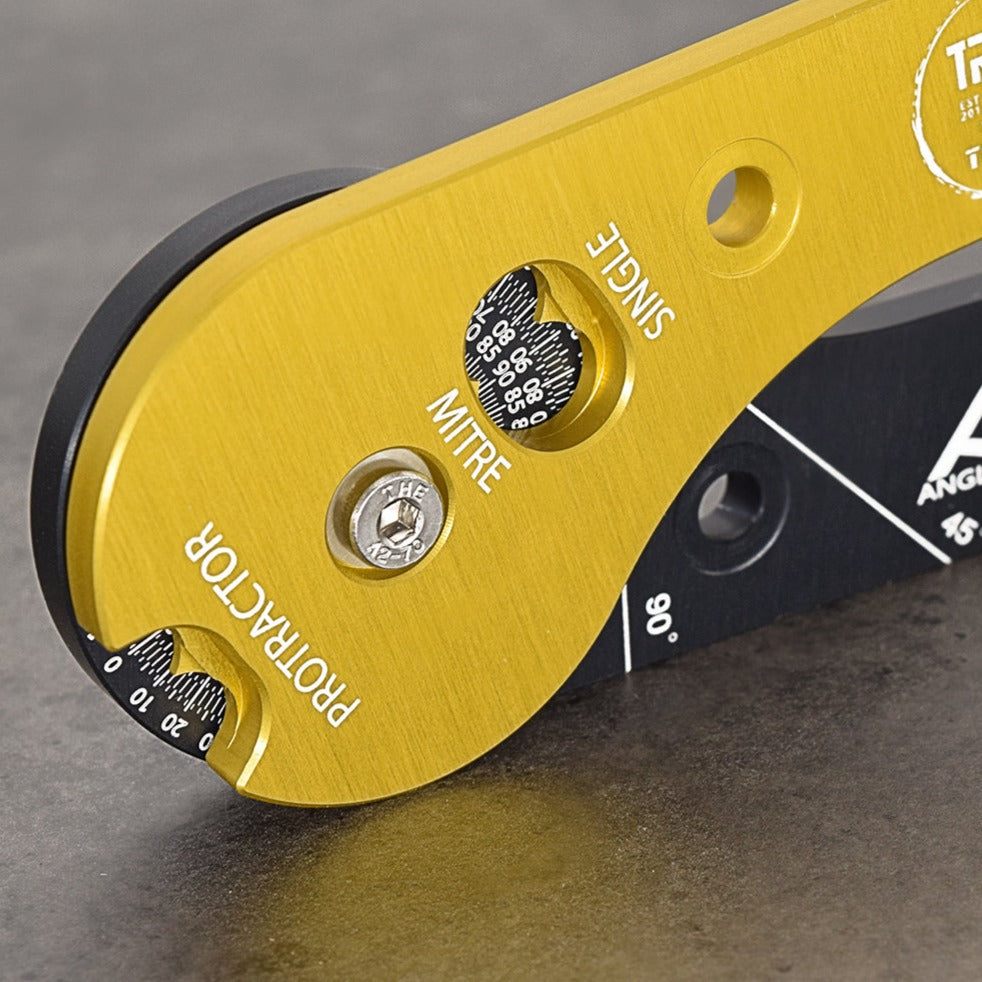

We've successfully integrated our unique Triple Display Design despite the mini 2" diameter face. Protractor angle, mitre angle* and single cut angles* are all included with locating arrows. Showing you just to read outs you need.
At 4.5oz the AF4 is light enough to carry in a pocket or tool belt, yet robust and sturdy enough for daily site use.

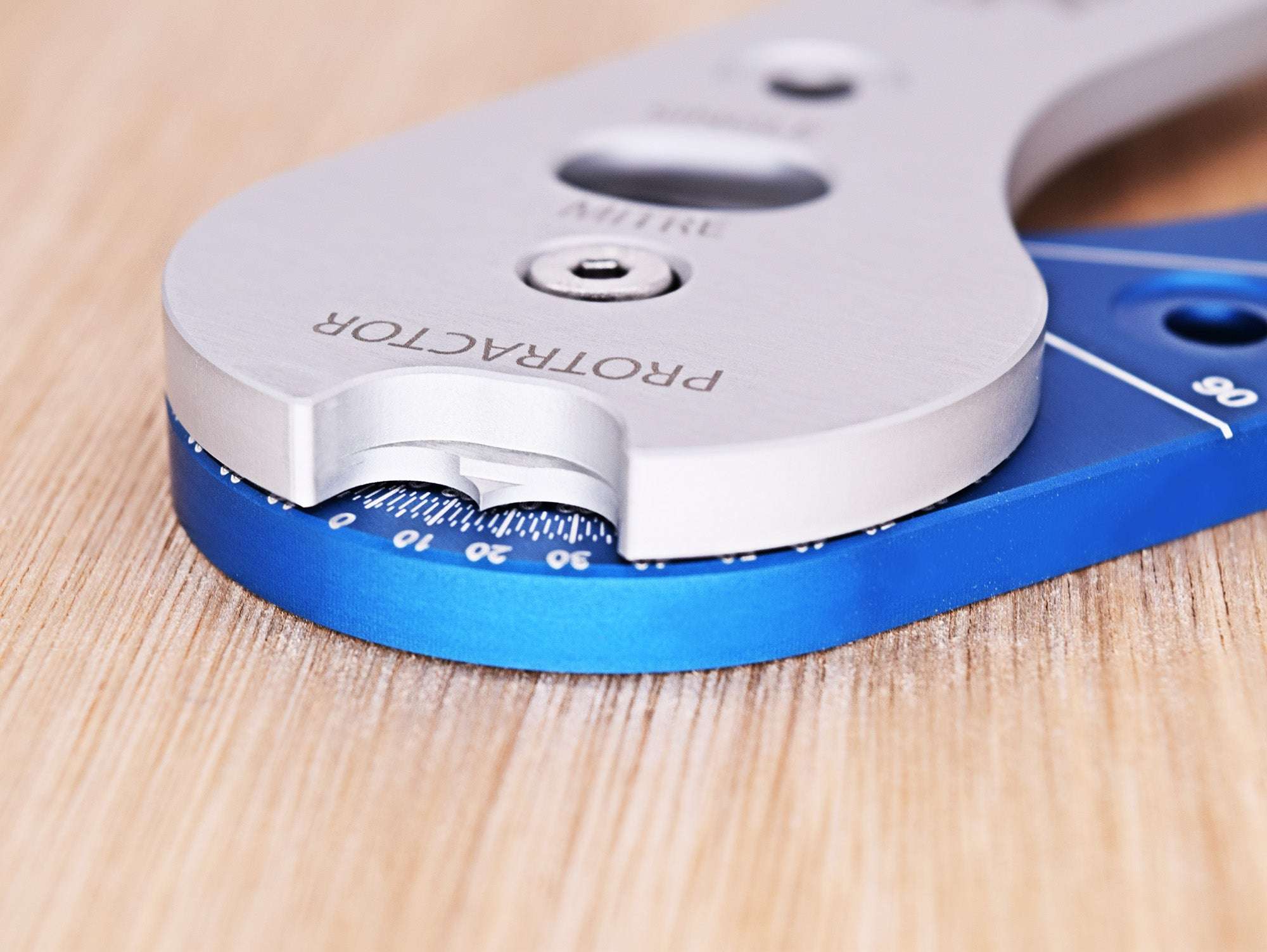

Fully designed and built in Great Britain, the AF4 is CNC machined from 6082 T6 aluminium with a 15 micron thick protective anodised coating•. We've also redesigned the centre pivot so that it is recessed both top and bottom allowing it tool to sit flat against a workpiece.
* Mitre and Single readings are used to set up your mitre saw. For mitres not using a mitre saw you simply halve the protractor reading.
Choose options
ANGLE FINDER
FAQs
It really depends on your preferred and project at hand. The TrigJig AF6 Angle Finder is an awesome all rounder. The pocket sized AF4 is ideal for a light, everyday carry anytime you need to measure an angle. Whilst the TrigJig AF9 and AF16 Angle Finders are perfect for taking readings over a longer span such on older houses, where walls aren't straight, or the corners are built up/low with plasterwork. The AF9 and AF16 also feature extra look up tables and more complex coving charts.
Without the need for batteries, our robust and ultra precise Angle Finders won't let you down. With no need to calibrate it won't give you a wrong reading as there is no need to zero or replace batteries. The solid construction of manual angle finders makes them unlikely to break from falls or harsh conditions compared to digital models. Which usually have delicate screens and electronics. The markings are laser engraved and will last for years backed by lifetime warranty.
CNC machined from high quality T6 6082 aluminium, they are dependable, tough, and corrosion resistant. Enhanced by a 15um thick anodised finish. Much more suitable for the day to day rigours of the job site than plastic models.
All TrigJig Angle finders feature our unique, uncluttered display. Smartly covering all the increments you don't need to reveal just the readings you need for protractor, mitre saw/gauge and single butt joint angles.

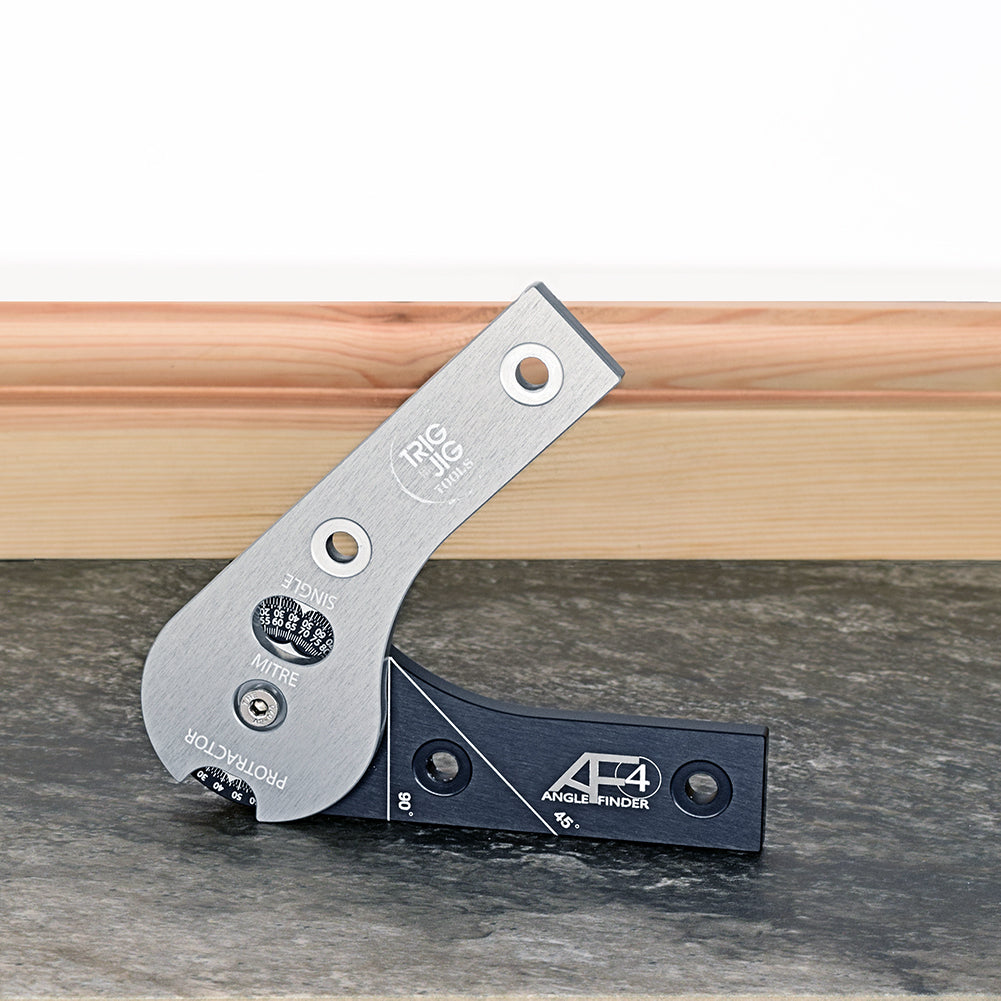

Angle Finders are perfect for measuring any angle, internal or external. In Carpentry, use your TrigJig Angle finder for measuring and replicating angles for framing, trim work, skirting and coving, fitted furniture, bay windows, wooden garden structures and many other woodworking projects. They are great for many other trades too where precise angle measurements are needed, such as metal fabrication, plumbing and more.
TrigJig Angle finders are quick and easy to use. Simply press the tool into or around the corner/space you are measuring. Read the relevant window you need for the protractor angle, transfer the mitre reading straight to your mitre saw or gauge, or use the single window for cutting a single butt joint.
As TrigJig angle finders have increments laser etched every 1 degree you can get a highly accurate reading when measuring any angle. The locating arrows are also CNC machined for a low profile which reduces parallax errors, especially when viewed directly from above. Available in many high contrast colours, coupled with the uncluttered display, they are quick to use and easy to read.
