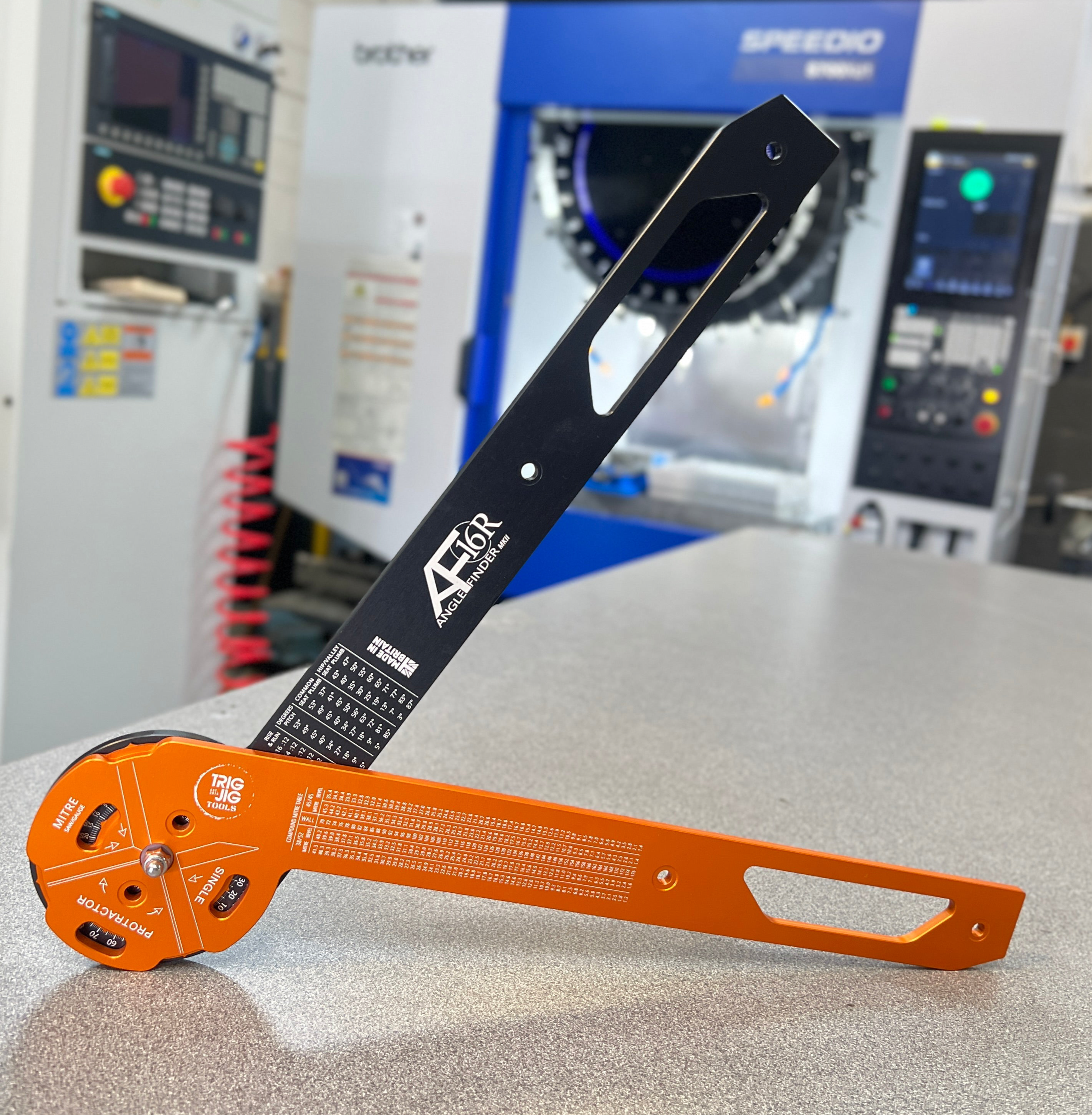

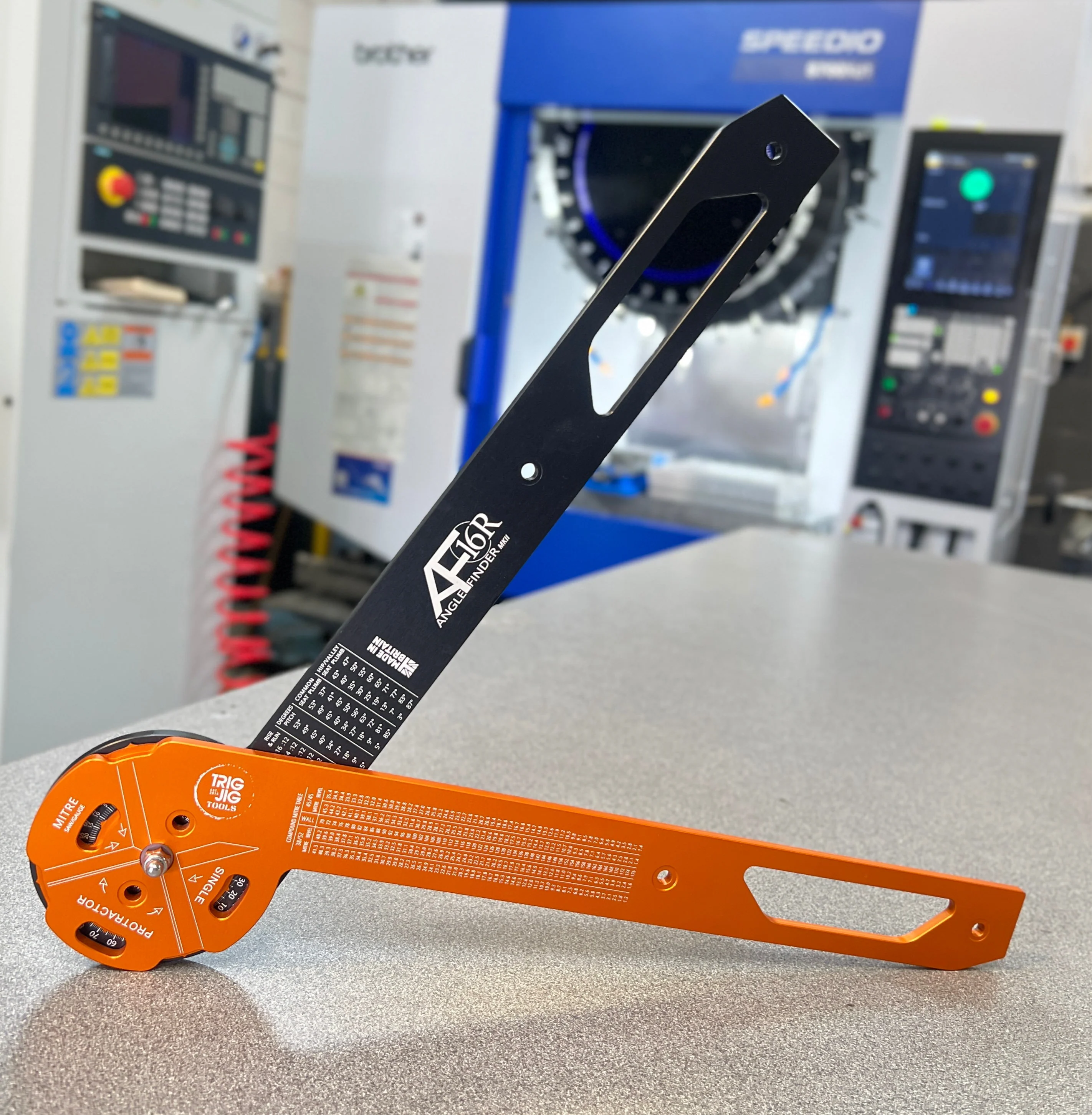

The TrigJig AF16 Angle Finder is the biggest Angle Finder in our range with up to 16 inches on each measuring arm.
Now even more robust the AF16 is Fully CNC machined from 1/4" aluminum with a protective anodised finish and precision scales lasered directly onto the arms to create the most impressive and highly accurate site protractors we've ever made!

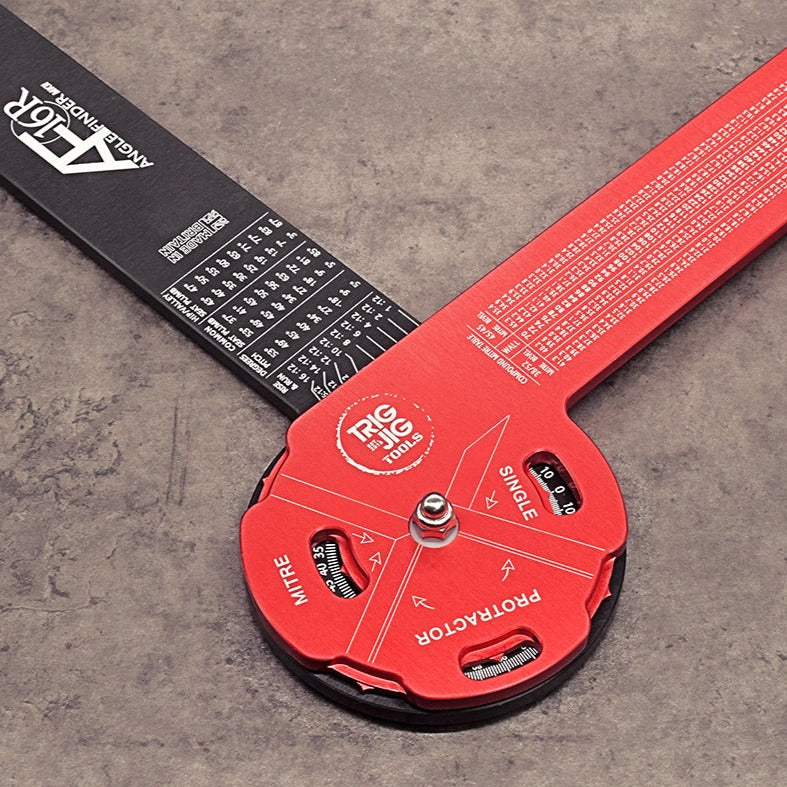

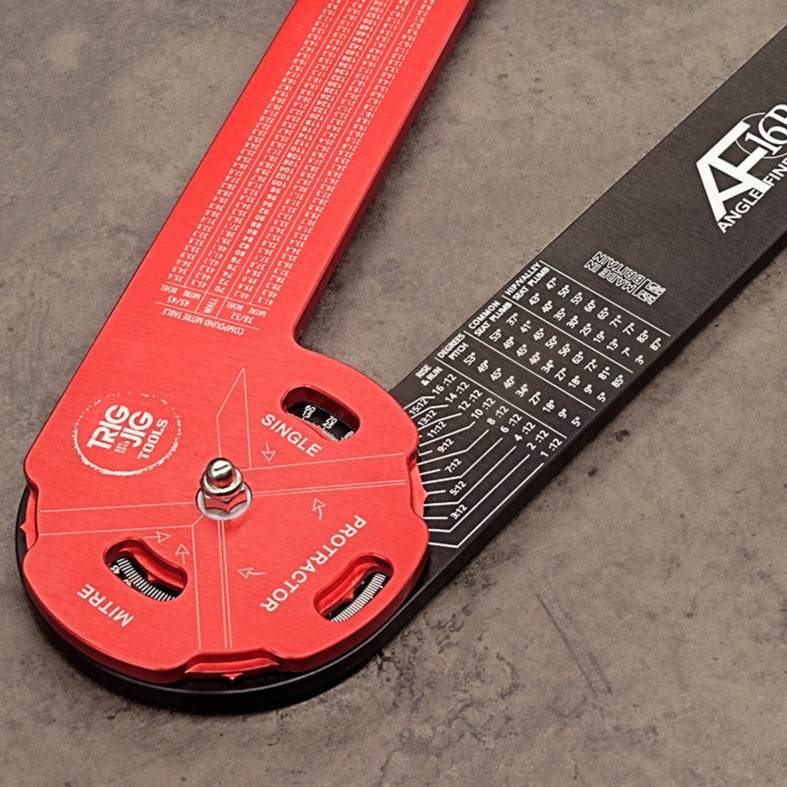

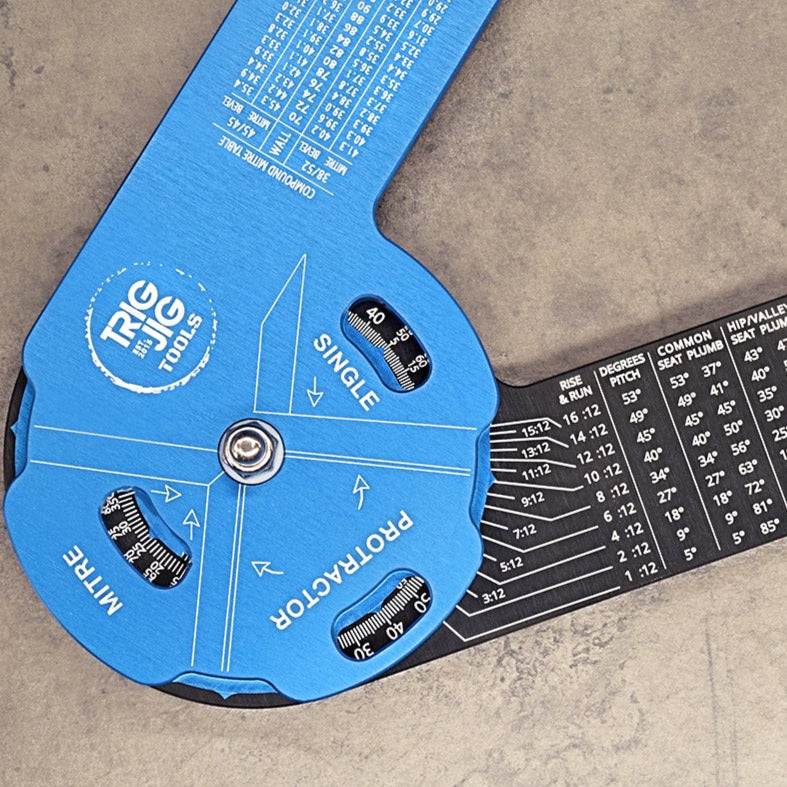

The AF16 includes a unique Quad Display Design showing the protractor angle, miter angle, butt joint angle and an extra scale showing rise and run angles.

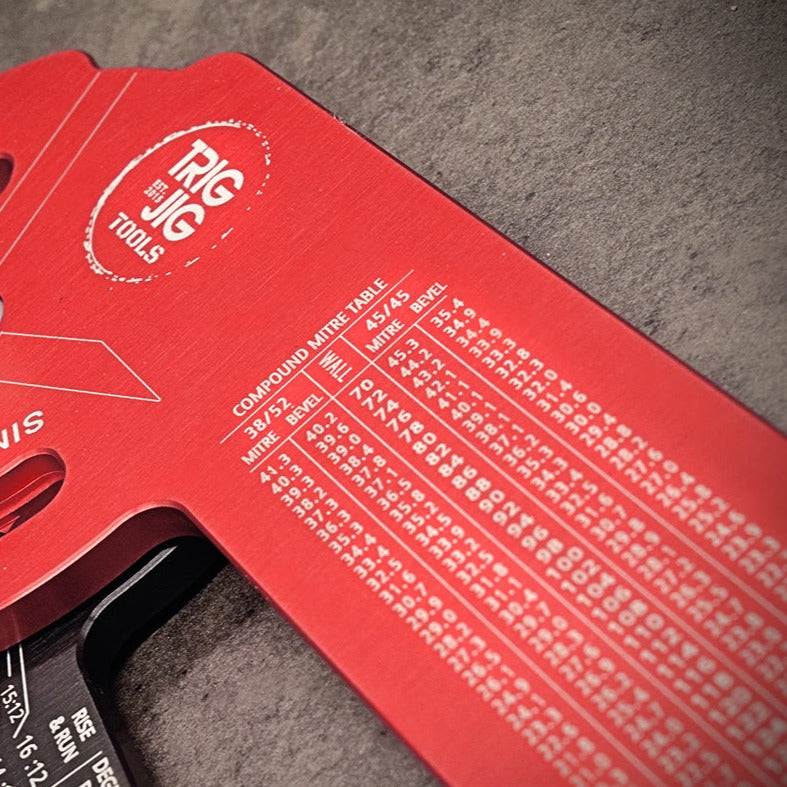

We've also included a quick-reference lookup table for crown molding projects. The table clearly displays the miter and bevel settings for your miter saw based on the most common corner angles and crown molding spring angles (45° & 38°).
The extra long, anodised aluminum measuring arms are ideal for measuring corners where drywall mud has been used as the longer arms can take better overall measurements from uneven surfaces than the smaller AF6 or AF9.
A dedicated handy online calculator* for smartphones allows the user to input the protractor reading and instantly get the calculated angle they require for more complex crown projects.
Lifetime manufacturer's warranty included.
Suitable for roofing, paving, drywall installs, carpentry, finish trimming, metal fabrication, framing, floor laying, marking and laying out, the applications are endless!
- 16" (406mm) measuring arms
- Protractor display
- Miter angle display
- Butt joint display
- Rise and Run display
- Compound Miter chart
- CNC machined 1/4" anodised aluminum construction
- Laser marked scales direct to the tool
- 1° increments (>0.25° accuracy)
