RSA 12 Adjustable LE Rafter Square

$199.00 USD

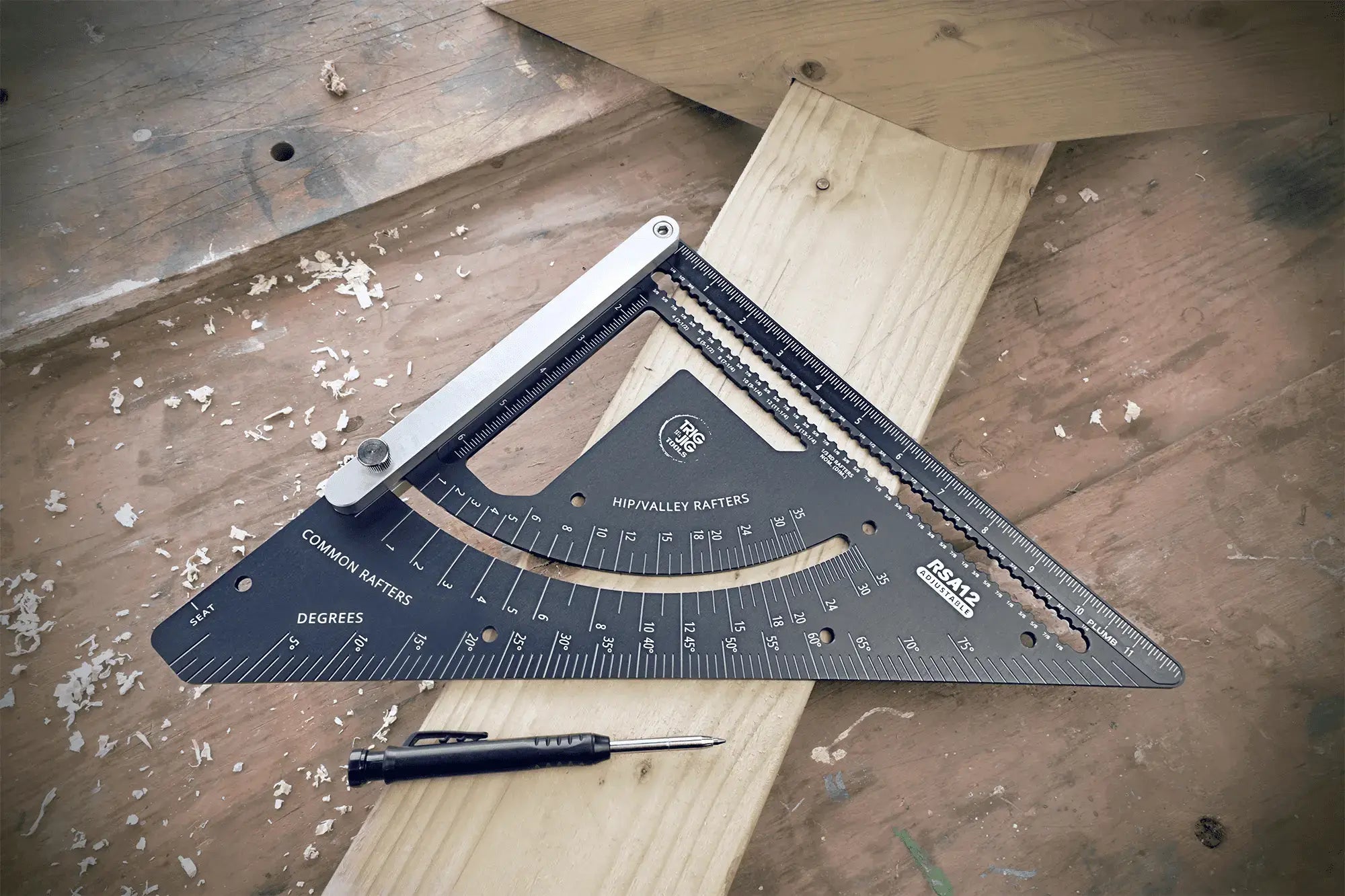

The RSA12 Adjustable LE Rafter Square is a large 12-inch speed square with an adjustable fence.


With enhanced features, we've created it to be top of its class when it comes to design, build quality, usability and style. As the bigger brother to the RSA7 Adjustable, it's ideal if you work with big lumber. Developed for quick and simple marking/laying out of roof trusses with the smart adjusting fence that locks in position for speed, ease and repeatability.

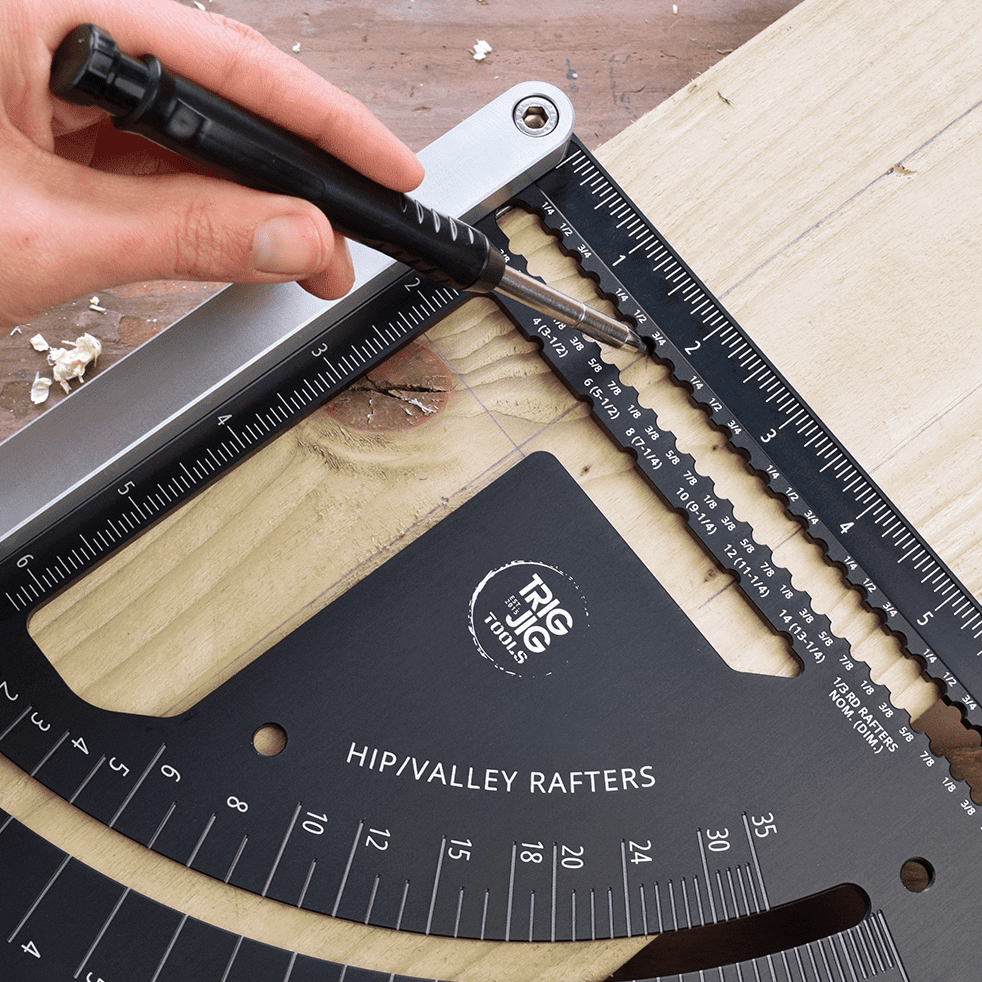

With several handy marking gauges on the blade, the RSA12 Adjustable LE can be used in many carpentry and fabrication projects, though its speciality is for roofing and use with big lumber. Curved scribe notches throughout the length of the tool relate to many common lumber sizes. These can be used with a variety of marking tools such as carpenters pencils, automatic construction pencils or just a standard pencil.

The RSA12 is manufactured in-house from the highest quality T6 4mm thick aluminum. We CNC machine each tool to tight tolerances, with right angle precision of +/- 0.008° along the entire length.

The RSA12 has a protective 15um thick anodised surface to help protect against the elements. The laser marked graduation rulers and parallel scribe scales are recessed in pockets to avoid wear over time.

The degree lines are deep engraved so they won't rub off, and as they are made on the same CNC milling machine that profiles the square, the level of precision is excellent.

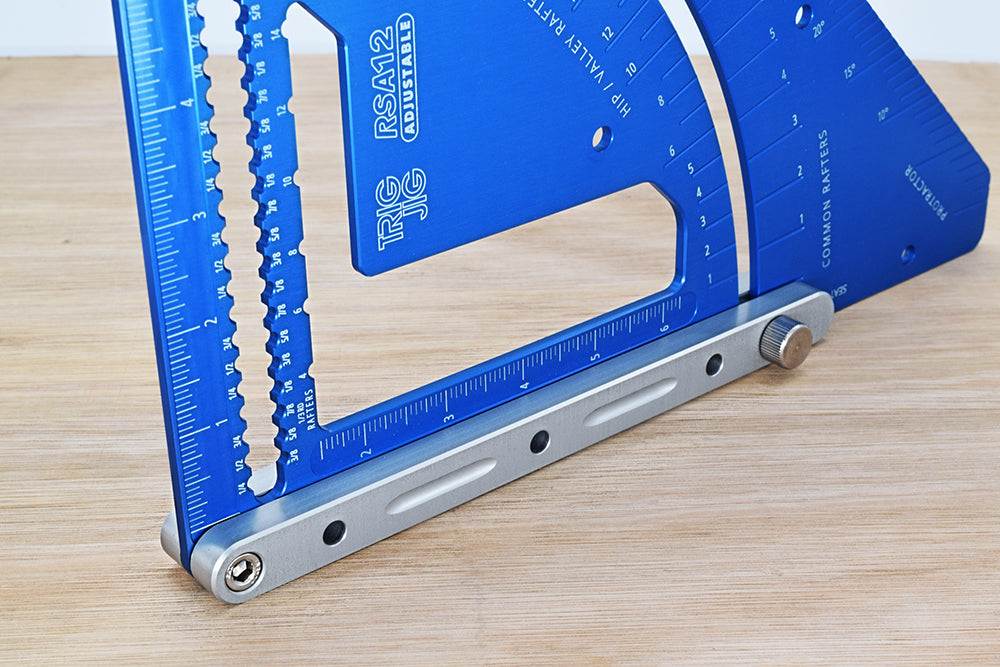

The adjustable anodised aluminum fence is also CNC machined and is fixed to the tool via a nylon 66 bearing for smooth operation that snaps back to exactly 0°. The fence can be locked in place with a stainless steel thumb screw for repeatable cuts and marking super precise birds mouths, without any repeat measuring required.

There are several features and marking gauges on the face of the tool, including;

  • 12 inch recessed rule (plus a smaller rule along the fence edge)
  • Fixed deep engraved protractor gauge along the hypotenuse edge
  • Rise and run protractor gauge (in degrees and fractions)
  • Scribe lines for common timber dimensions every 1/8"
  • 1/3rd scribe marks for common timber thicknesses
  • Rise per foot of run table
  • Rafter length per foot of run table

The precision and workmanship from our manufacturing process is unrivalled and next level compared to mass-produced, laser cut or cast rafter squares. The RSA12 Adjustable is built to an extremely high standard, designed for tradespeople who are looking for exceptional durability, design and quality from their tools.

  • Constructed from high quality 4mm aluminum
  • High precision CNC machine profiled
  • Adjustable CNC machined aluminum fence
  • Anodised protective finish
  • CNC laser-marked graduation scales
