Layout Square 12

*US CUSTOMERS - PRICE INCLUDES PRE-PAID DUTIES. SHIPPING FROM $19 USD.

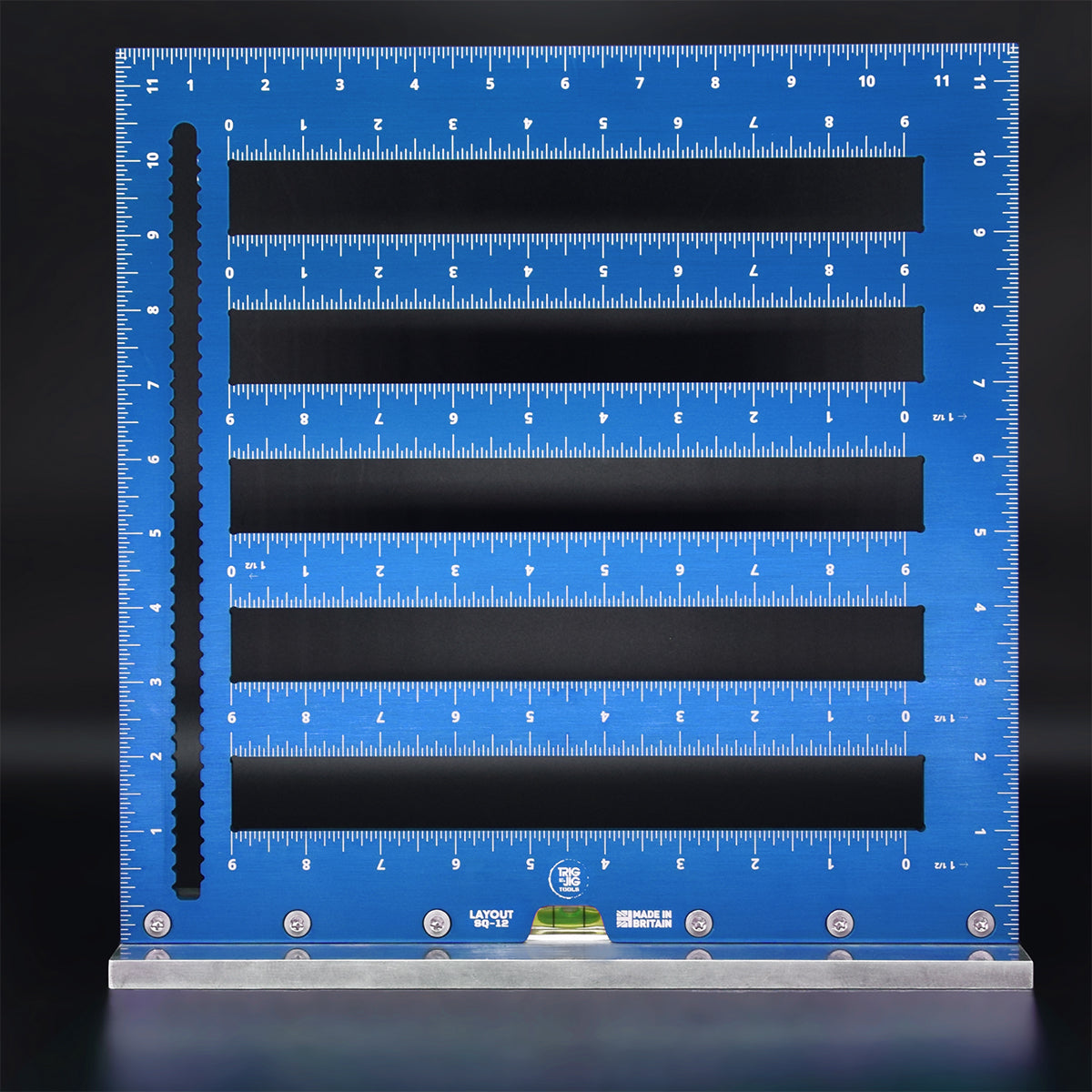

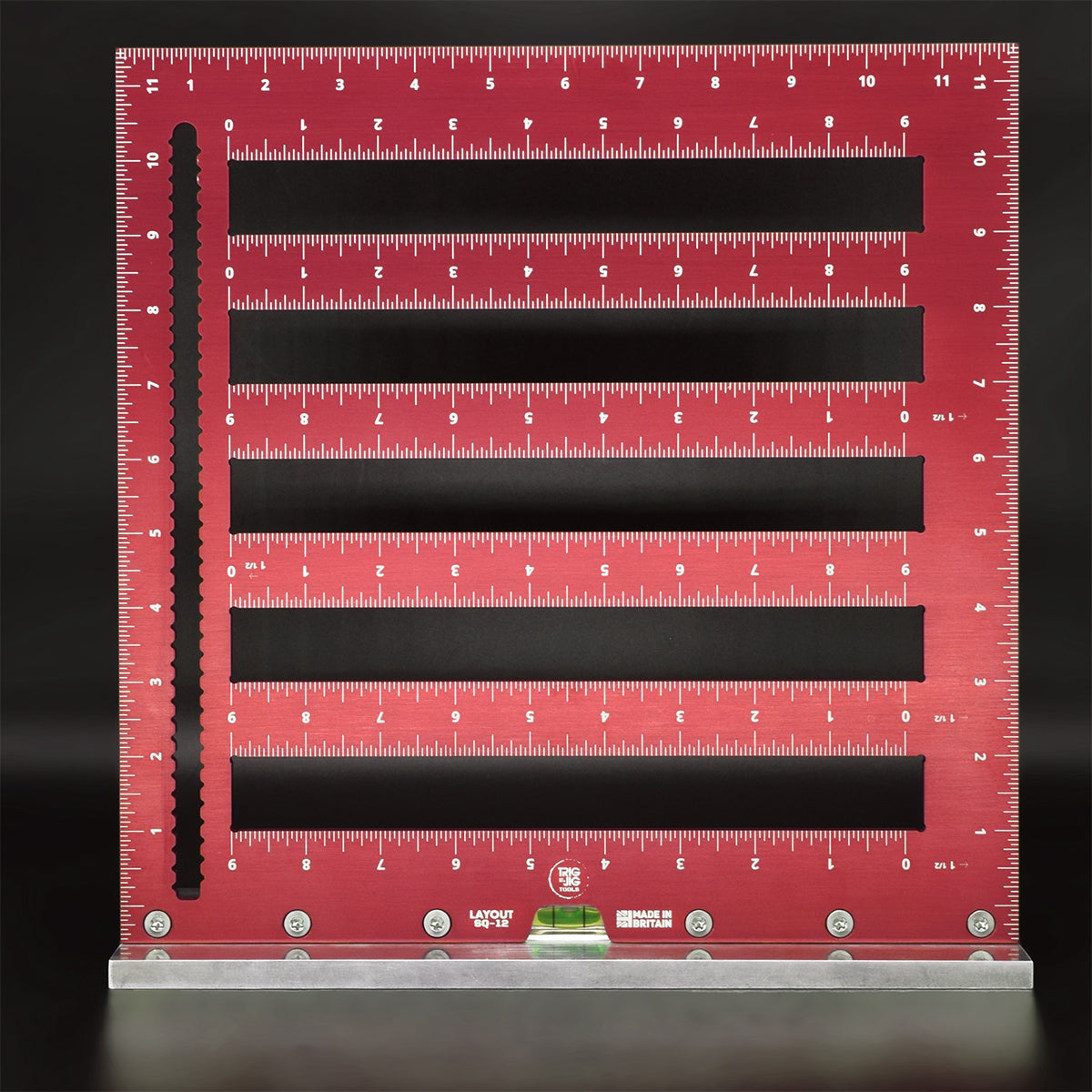

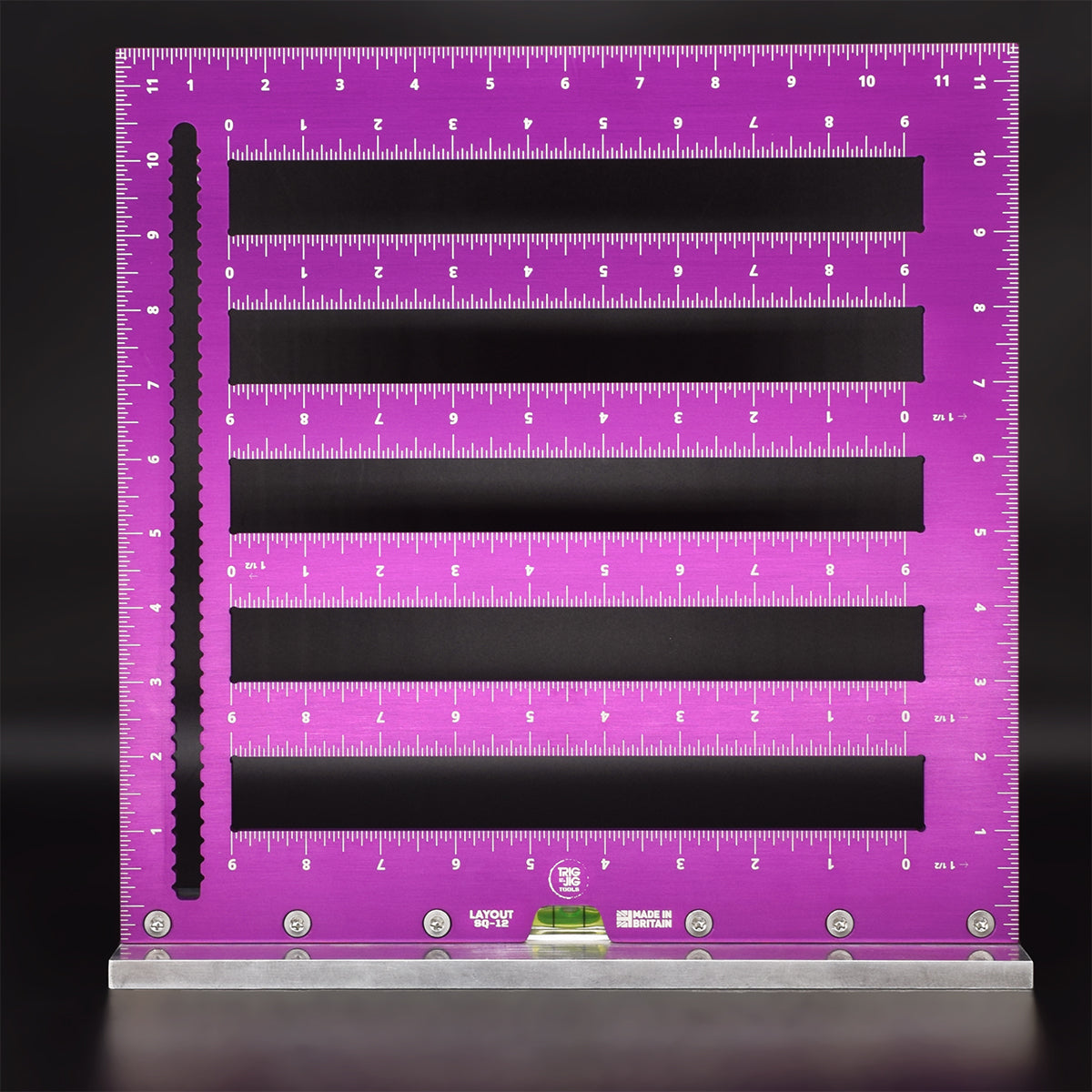

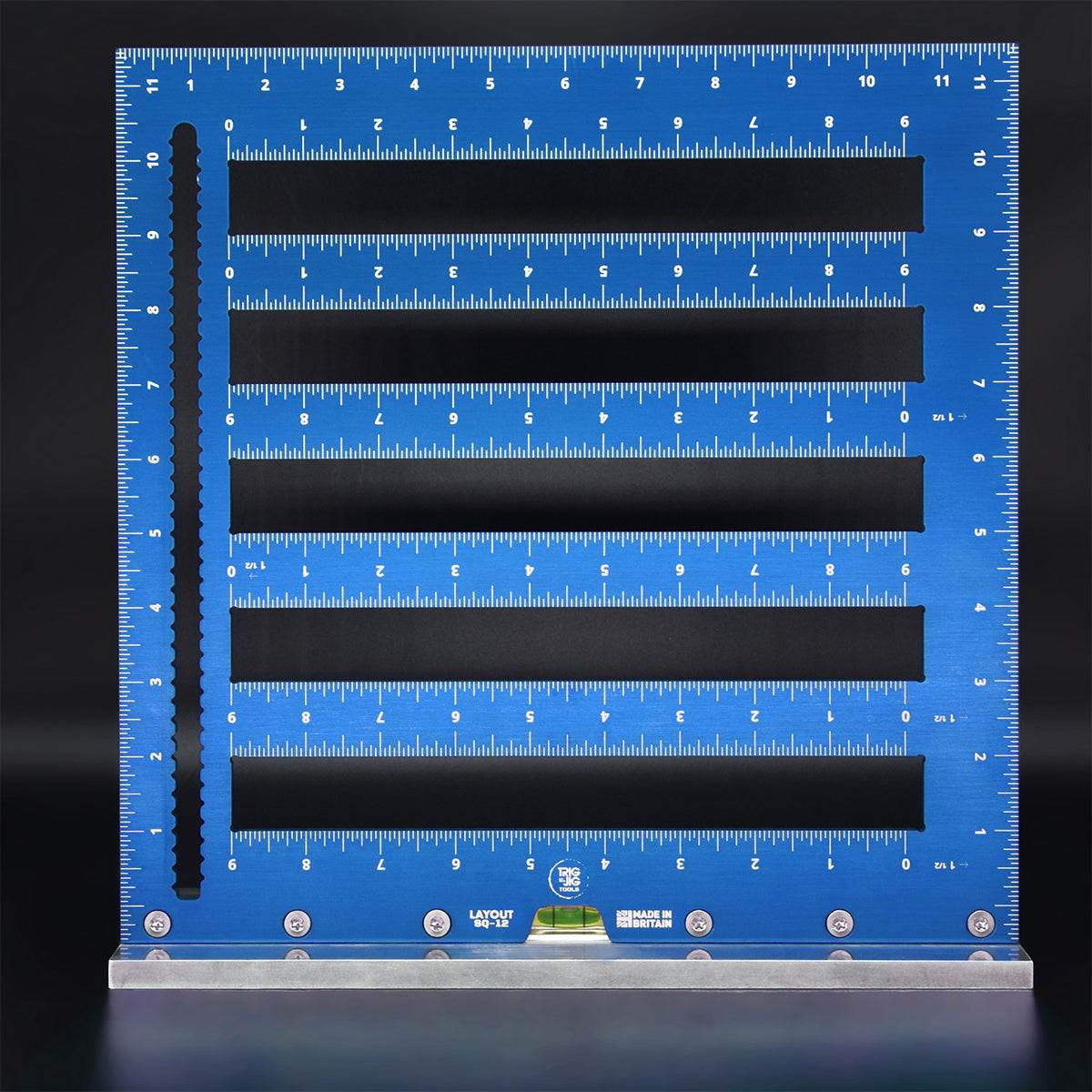

The Layout 12 Square is a robust, specialised tool for timber framing; it acts as an oversized square with timber-specific features to help framers quickly and accurately mark out popular timber framing joinery such as mortises and tenons.

WORK SMARTER
Features clean and precise slots and precision markings for common timber framing dimensions (1½", 3", 2", 4", and more), making it fast and easy to lay out tenon cheeks, shoulders, and other critical joinery with confidence. Designed specifically to speed up the layout process for timber framers, this tool replaces the need to constantly switch between tools, streamlining layout and saving valuable time on every project.

• 4mm T6 6082 aluminum body with anti-glare anodised finish. Highly durable and corrosion-resistant
• 12-inch rulers to 1/16 inch increments on all dimensions
• Chunky anodised aluminum heel for durability and stability, with added weight reduction
• Dimensions in the graduation slots to aid in peg layout
• Front and back offset ½” thanks to a clever heel design
• Bright white, laser-etched markings for clarity

BRITISH-ENGINEERED

The Layout 12 square is CNC-milled from the highest-quality T6 6082 4mm thick aluminum plate for durability and absolute precision. We CNC machine each tool to tight tolerances, with right-angle precision of +/- 0.008° along the entire length. Combined with an aluminium heel and handy bubble vial. It’s versatile and built to withstand the grind of any jobsite. With bright white, laser-etched markings. It delivers unmatched accuracy for measuring angles, making cuts, and laying out.

PRECISION MARKINGS

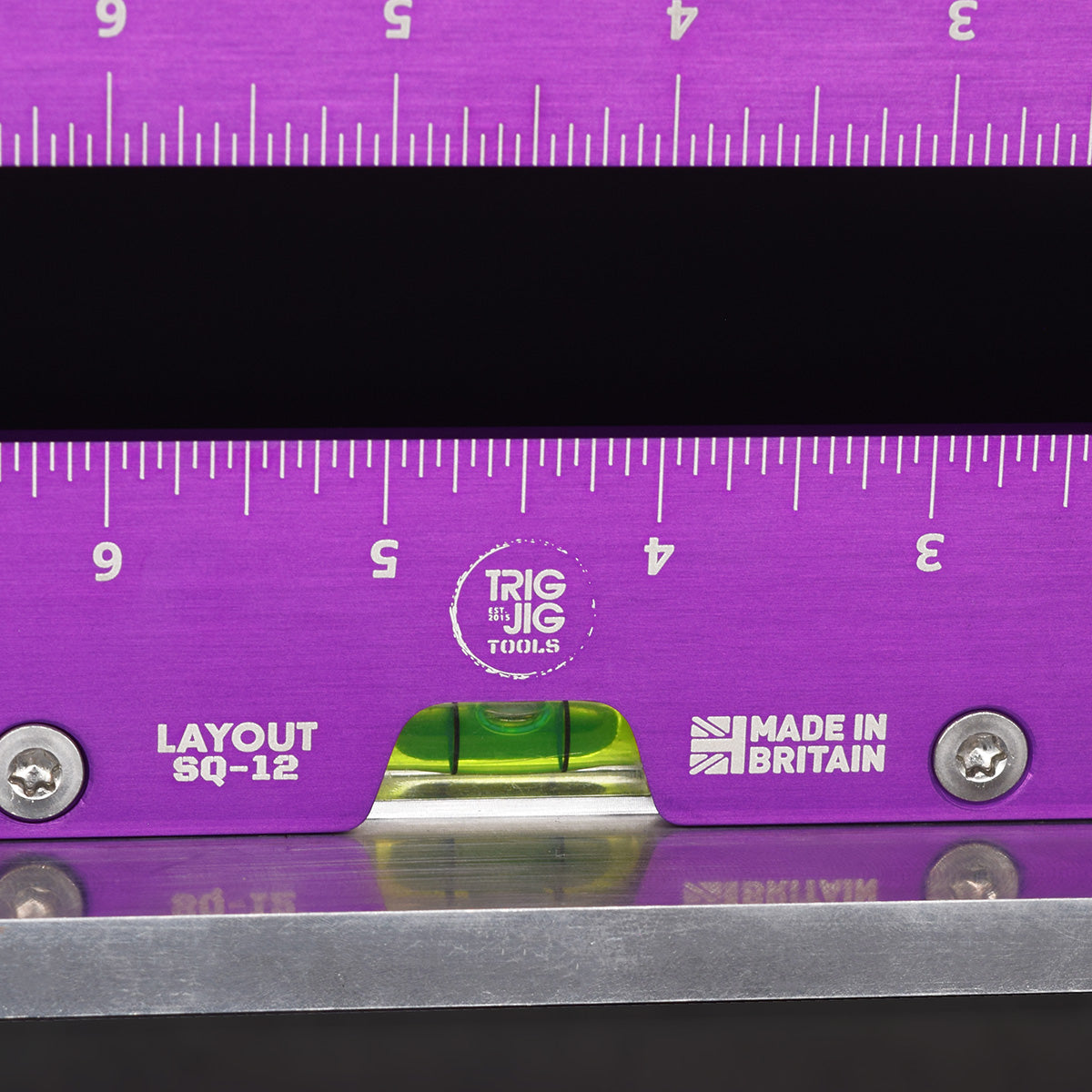

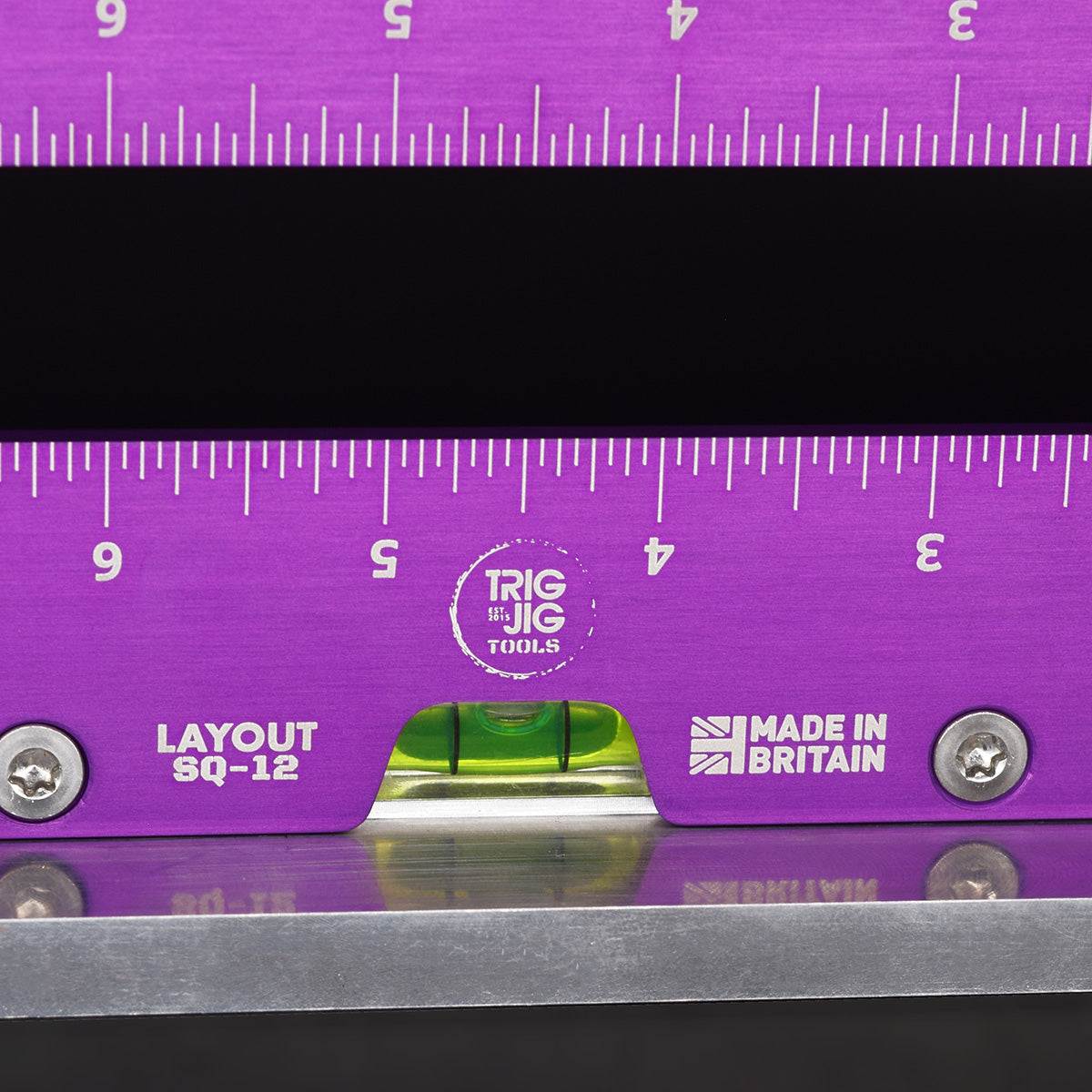

The one-piece anodised aluminium heel is also CNC machined and secured with countersunk, stainless steel machine head bolts. This houses a 30mm spirit level, visible from all four sides, and with a sensitivity of 0.5° per 2mm of bubble movement, makes it perfect for marking and finding level.

SUPERIOR BUILD QUALITY

Built to an extremely high standard, designed for serious framers looking for exceptional durability, design and quality from their tools.

• Constructed from high-quality 4mm aluminium
• High-precision CNC machined edges
• CNC-machined bare aluminium heel
• Anodised protective finish body only
• Bright white laser-etched rulers and markings
• Lifetime Guarantee against manufacturing defects
