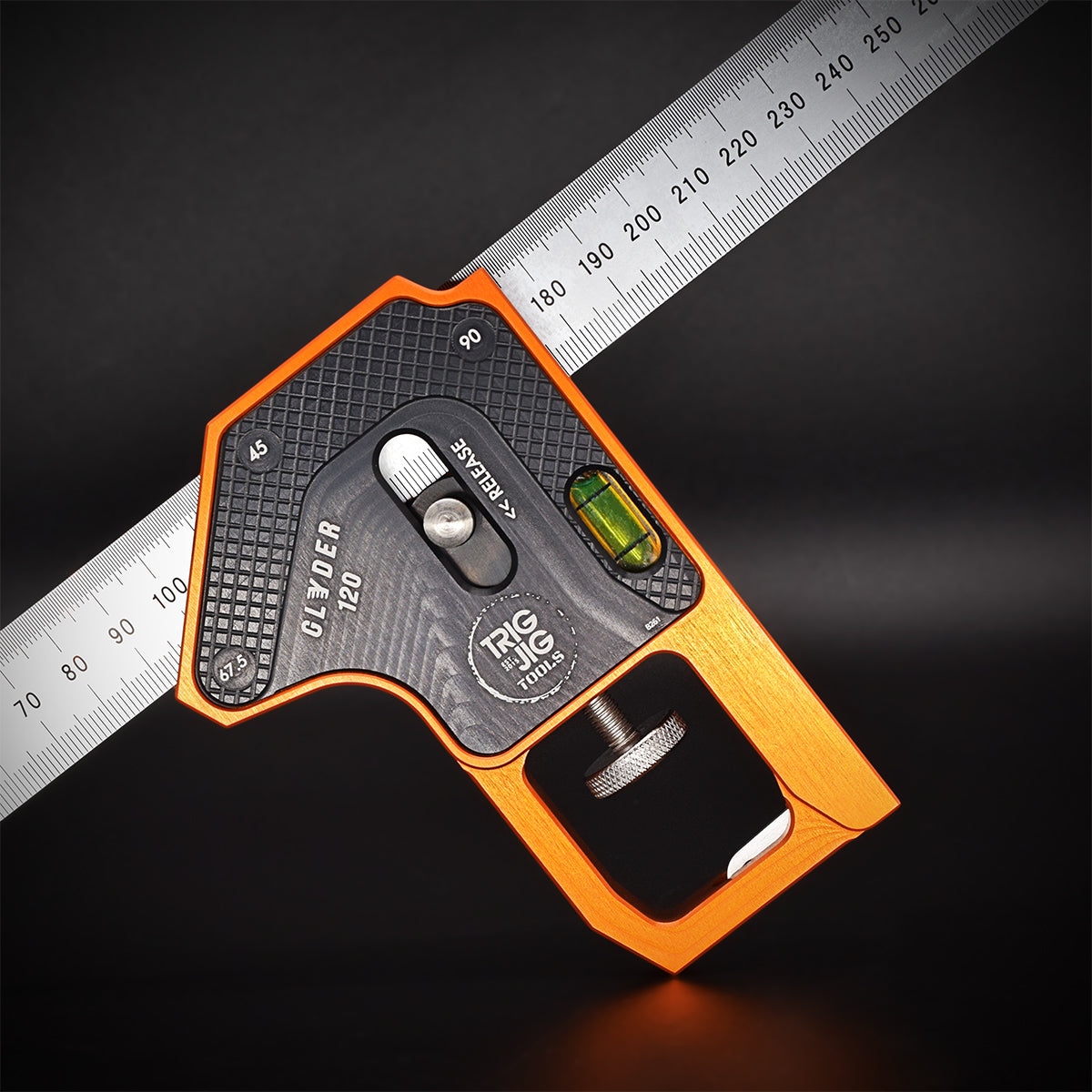

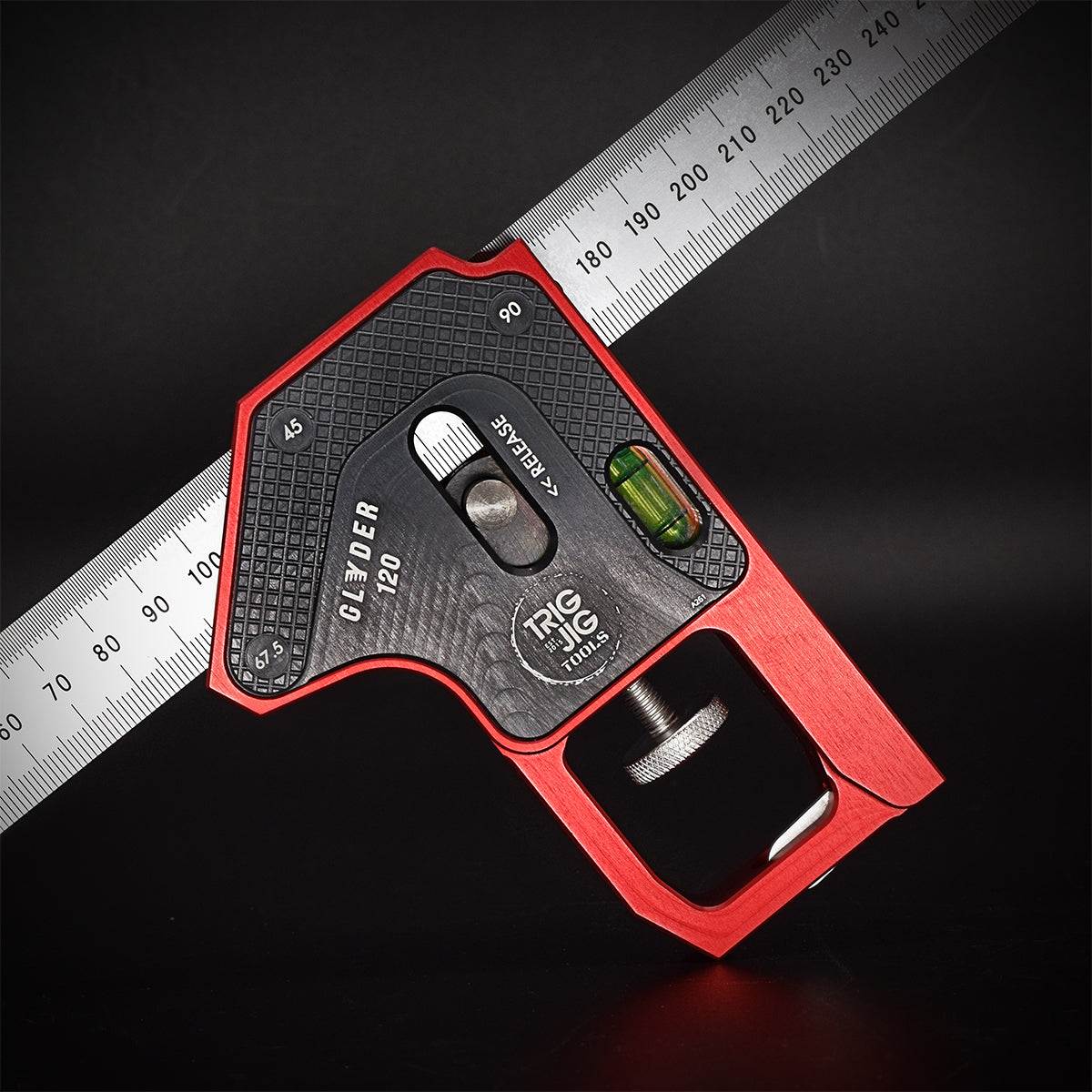

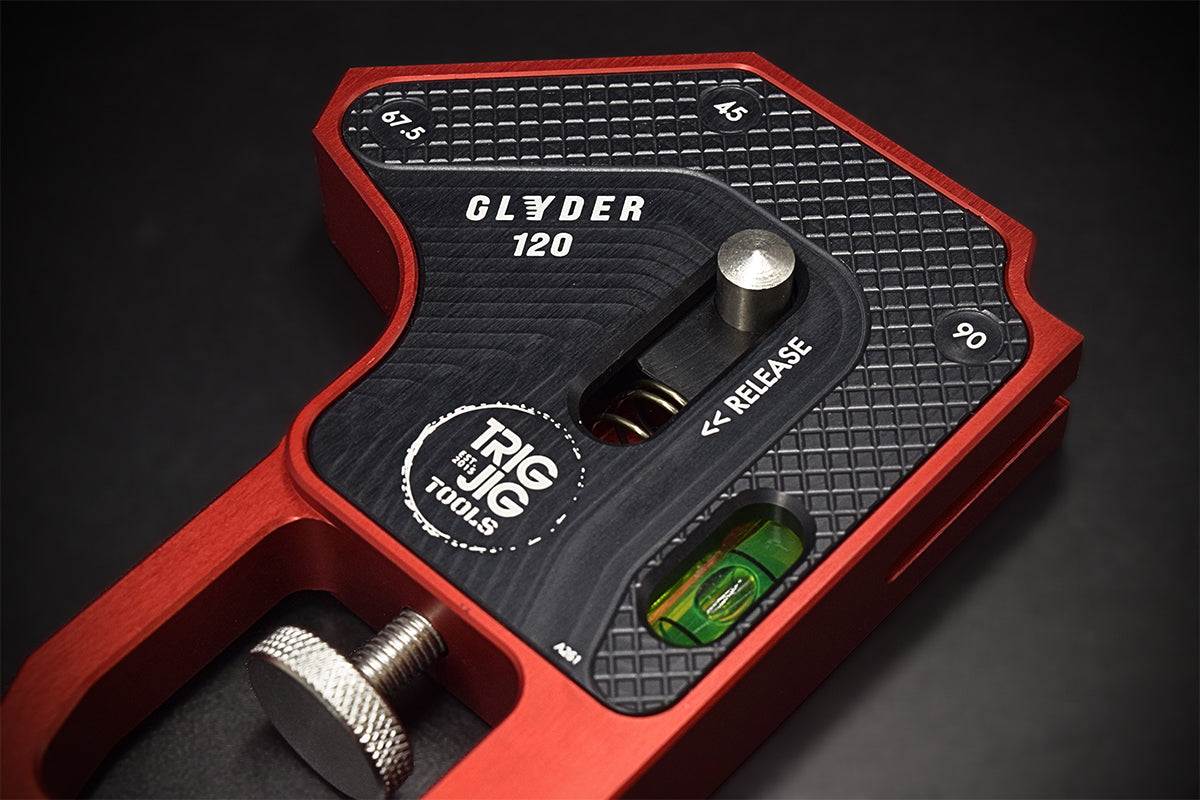

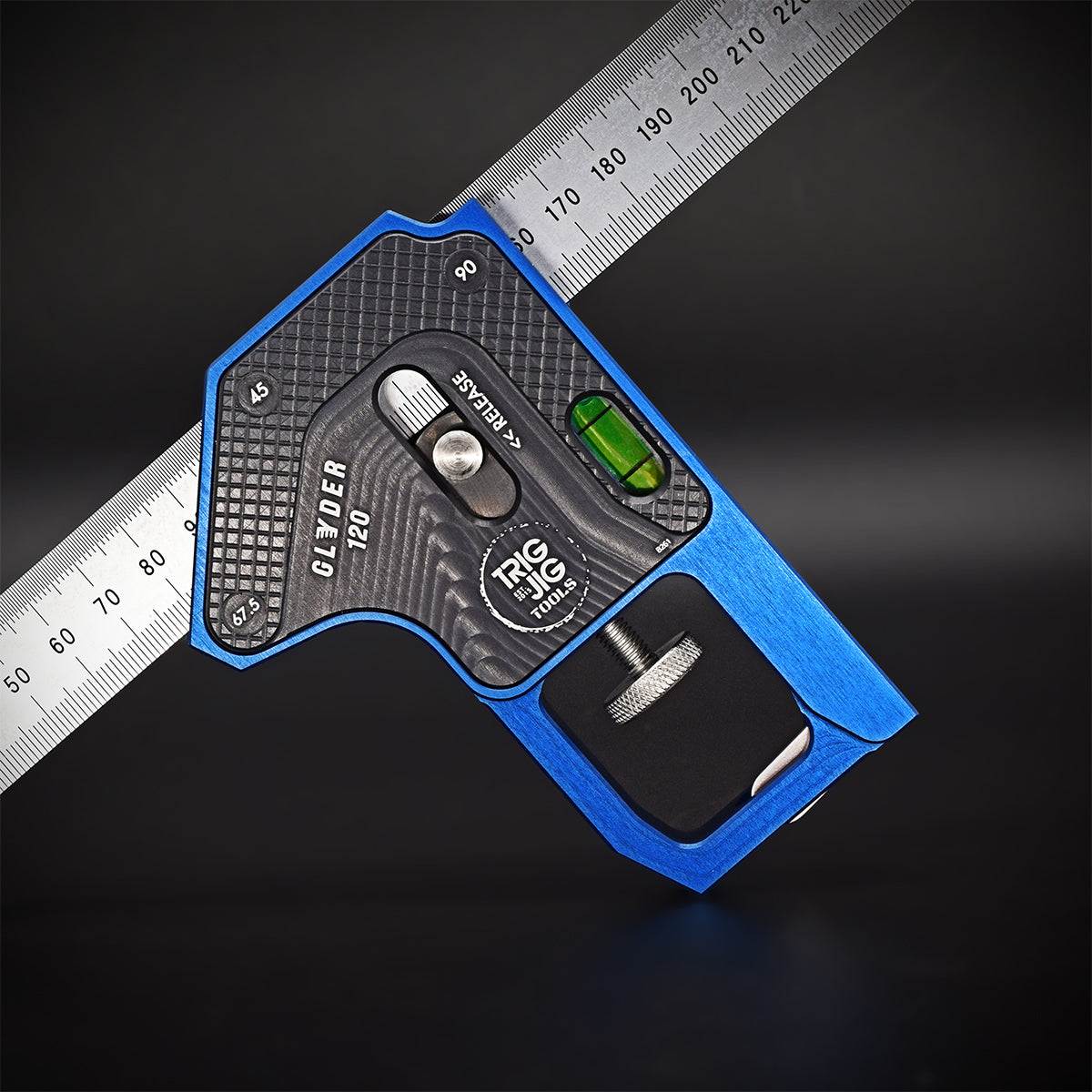

GLYDER 120 Combination Square (Body Only)

NEW Glyder 120 - Featuring a new solid piece profile!

A robust, British-made combination square built to last. Choose your own rulers thanks to the unique push-hold mechanism. We've further refined the design following on from the original Glyder 82/125.

NEW FEATURES

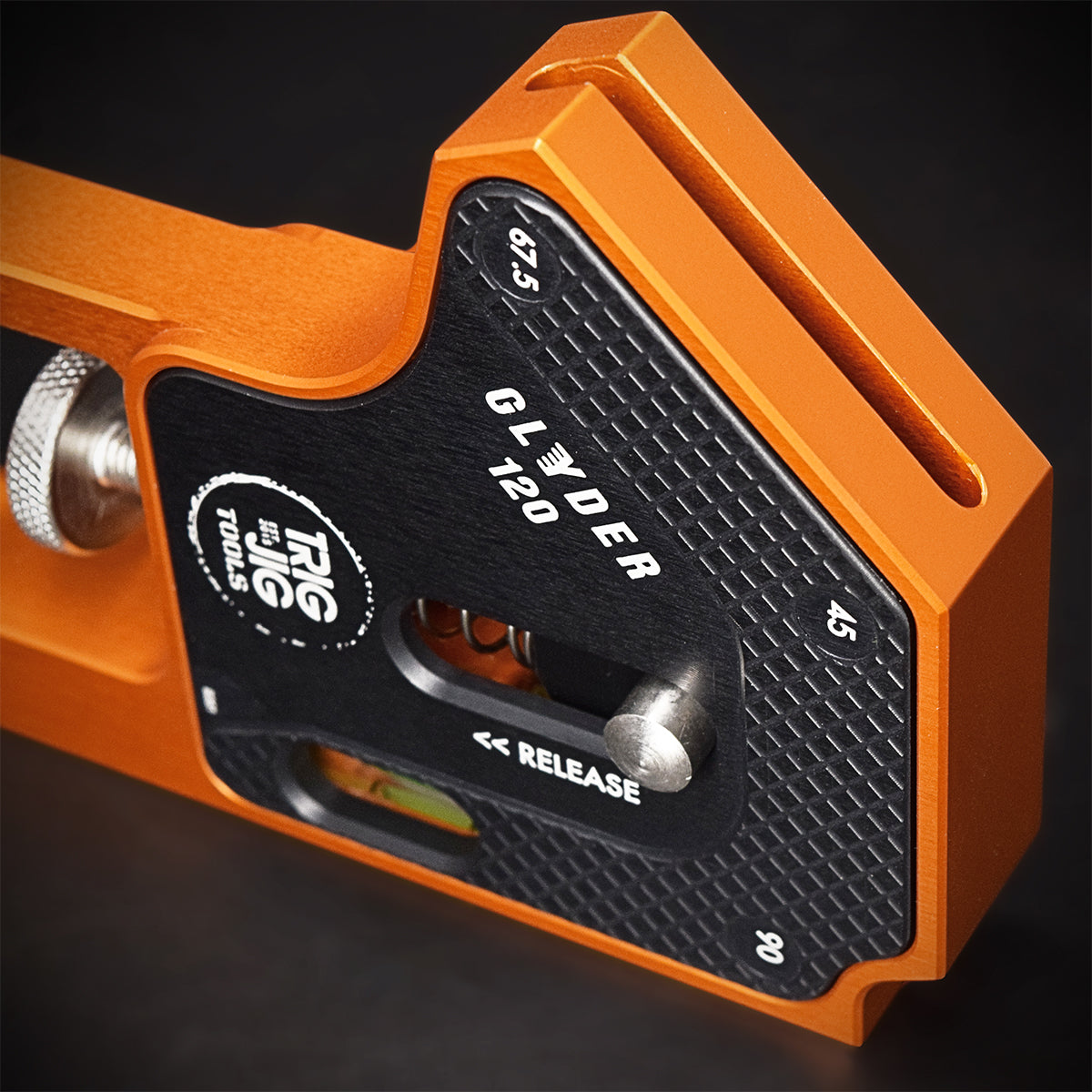

• New single-piece profile  - shorter and slimmer, reducing weight/bulk
• 250g, 120mm long and 83mm wide
• Faster, simpler calibration via face plate insert
• Refined ruler sizes for optimum operation
• Fits any ruler 18–28.5mm wide, 0.5–2.5 mm thick - Optimum size 25.4mm/1 inch
• Ergonomic knurled details on both sides enhance control.

RETAINED FEATURES

• Right and left-handed models

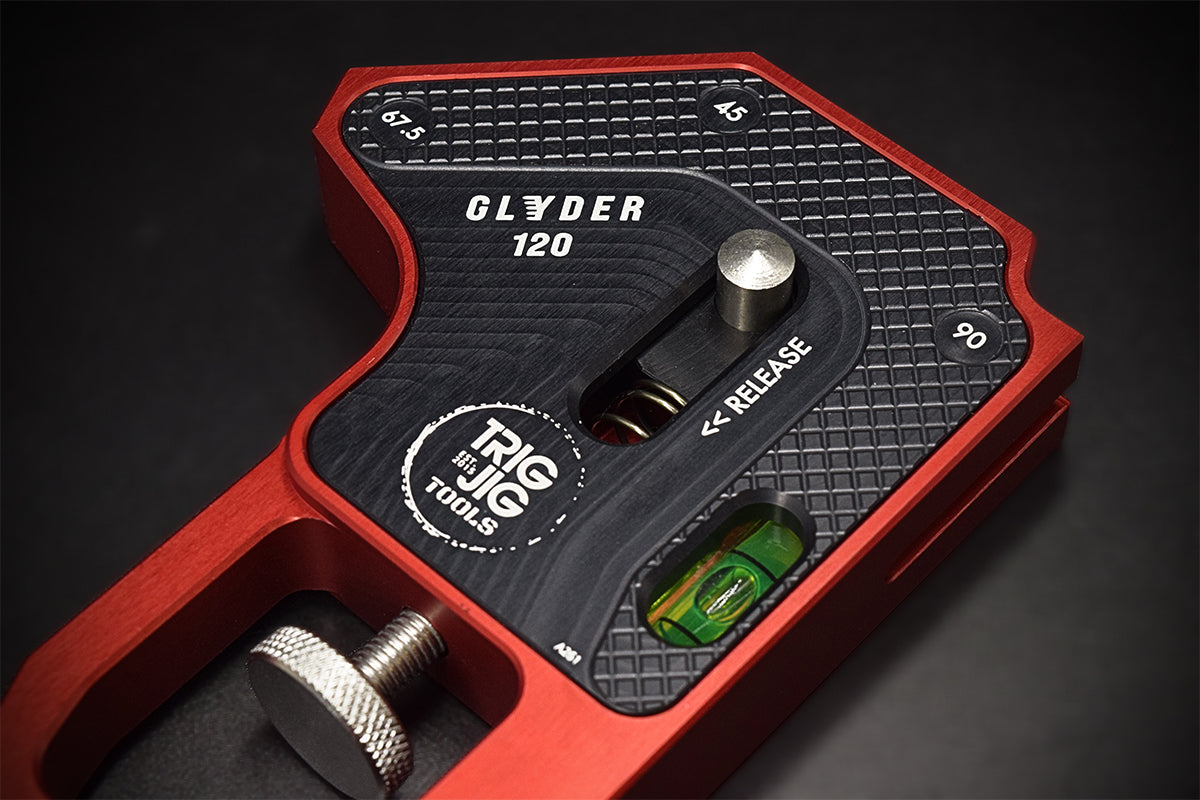

• Unique spring-loaded push-hold mechanism — prevents bolt fatigue
• Quick-release ruler system for smooth, accurate operation

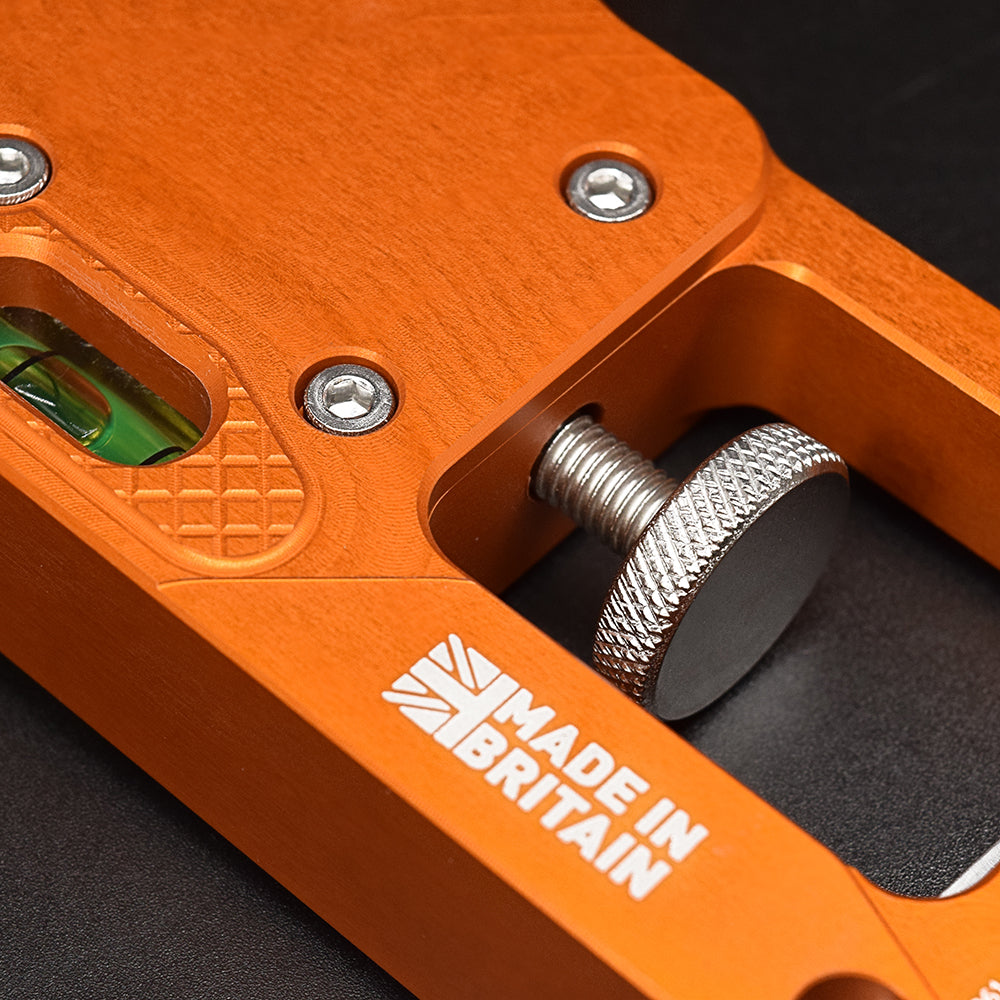

• Stainless steel thumbscrew & fastenings
• Precision CNC-machined T6 6082 aluminium construction

• 90°, 45°, and 67.5° angles
• Two adjustable bearings instead of one for precision alignment

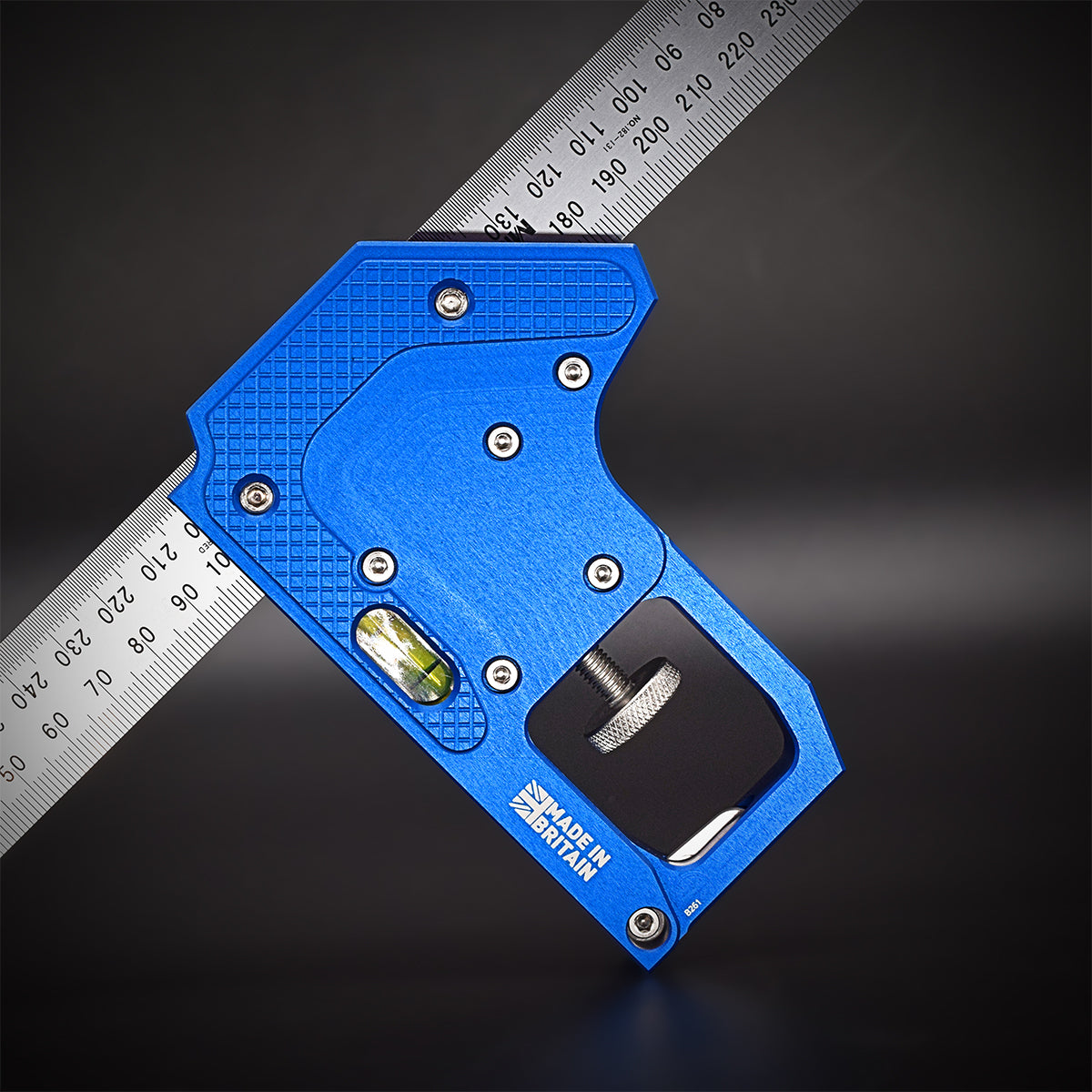

• Built-in bubble level
• Corrosion-resistant anodised coating in various colours

Re-engineered for the modern craftsman.
After over a century of tradition, we’ve flipped the engineering to create a robust, British-made tool built to last. Unlike fragile pull-hook squares, the Glyder range features a spring-loaded push-hold mechanism (patent pending) that securely holds the ruler in place and can be locked with the integrated stainless steel thumb screw.

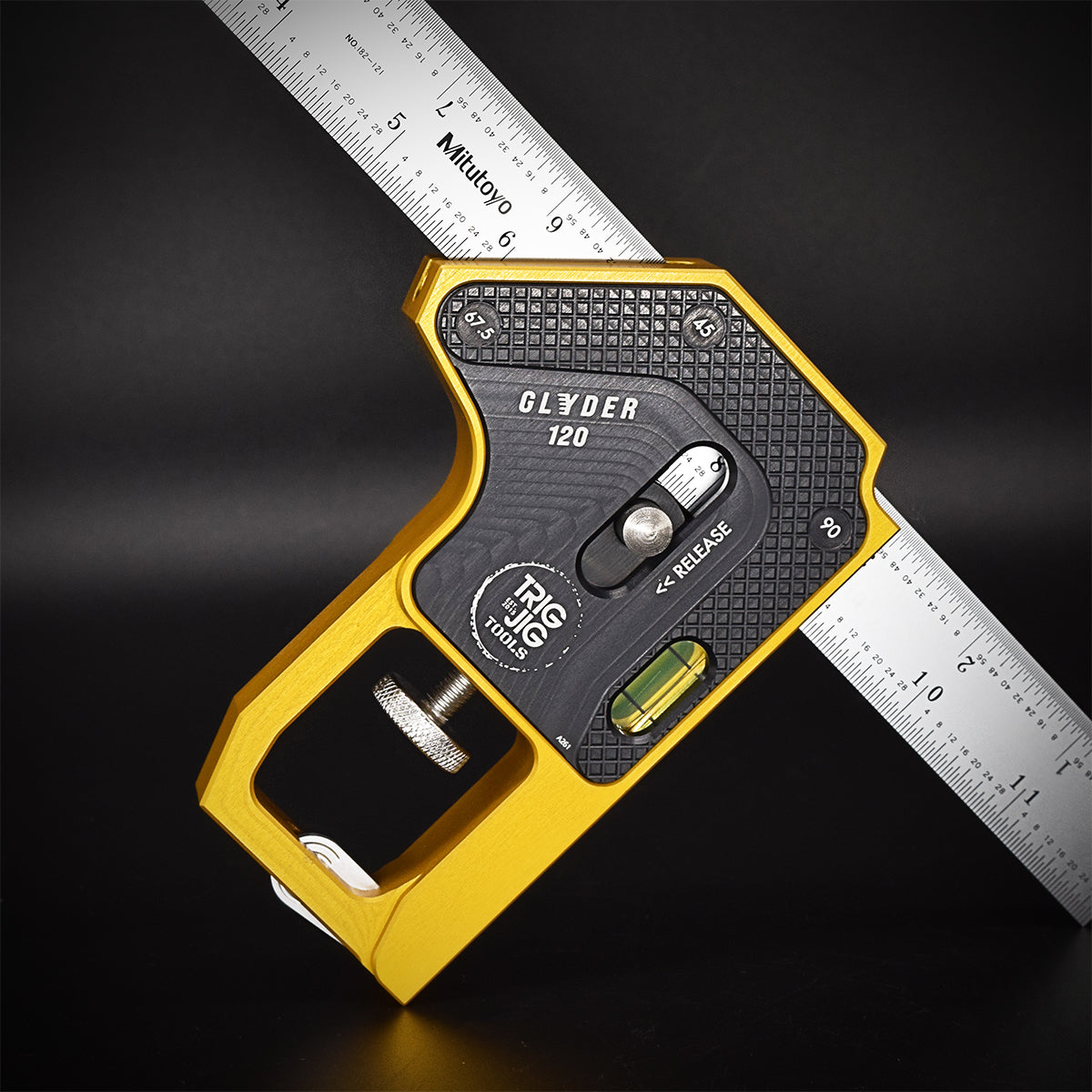

Compatible with any 18–28.5 mm wide rule, we recommend high-quality options like the Mitutoyo 6" or 12" rulers (sold separately).

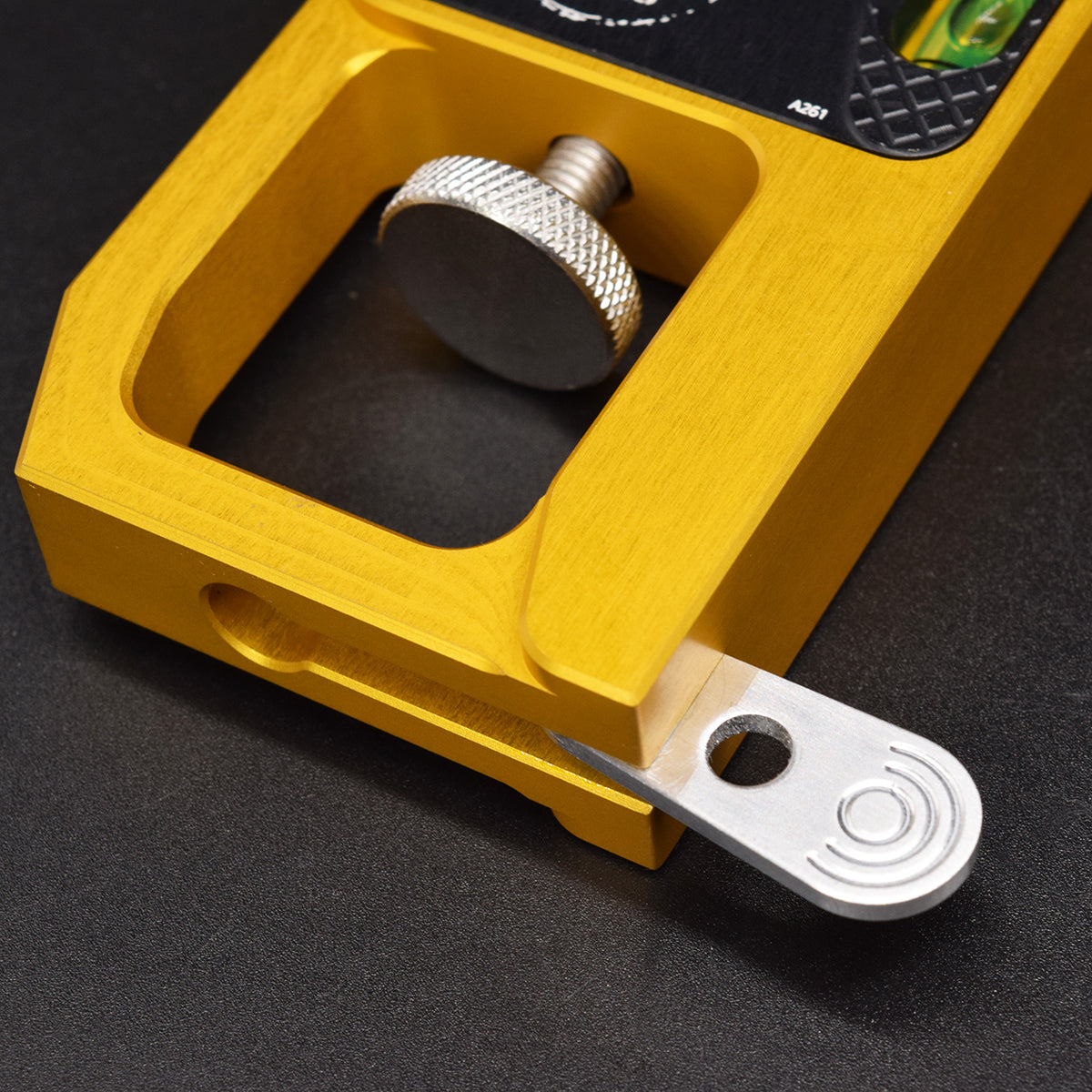

The CNC-machined T6 aluminium body and face insert are crafted to ultra-tight tolerances. Weighing just 250g, the Glyder 120 is larger but still lightweight. Highly durable, with easy access to wear strips for quick calibration—no more time-consuming adjustments.

Beyond standard 90° and 45° angles, it also offers 67.5° (22.5°) for added versatility. Ergonomic knurled grips on both sides enhance control.

Two adjustable spring-loaded bearings ensure the ruler is perfectly aligned for super-precise measurements, with dedicated models for right- and left-handed users.

Finished in a protective anodised coating (available in various colour combinations) and featuring a built-in bubble level, the Glyder 120 is precision and practicality refined.
